Hall System Accessories

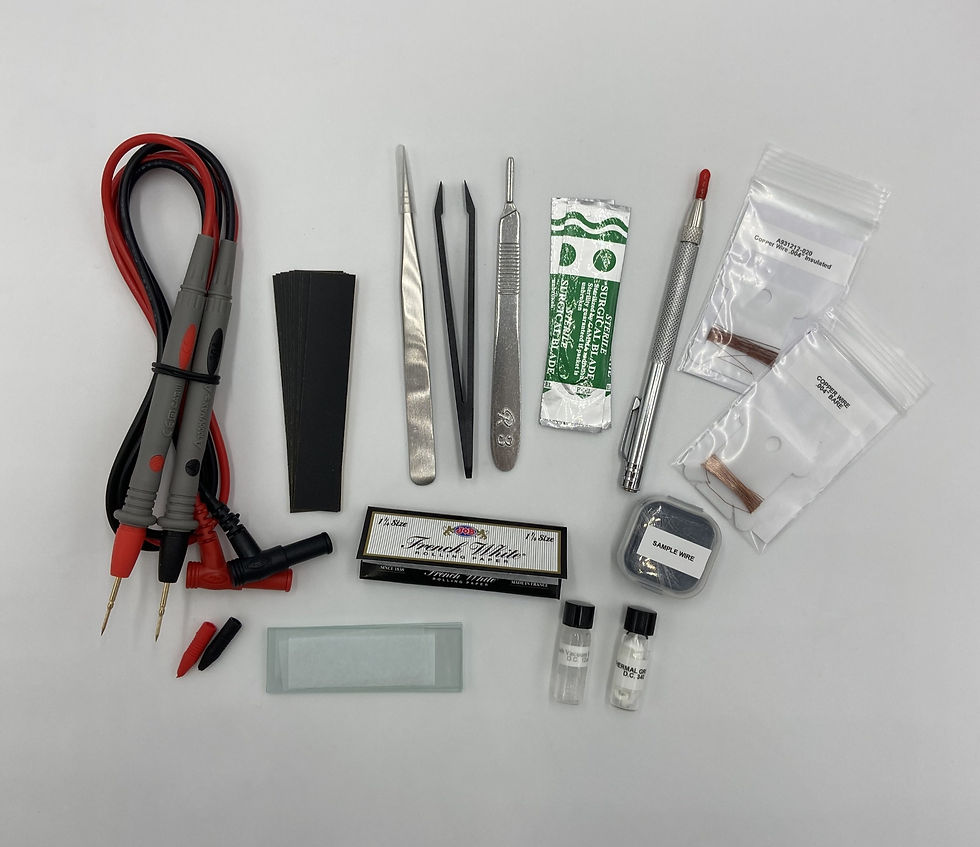

Hall System Sample Mounting Kit

Sample mounting kit for Hall effect systems. The kit includes essential tools, greases, sample wires, and other important accessories to assist in preparing the semiconductor sample for Hall effect measurements.

Part Number:   C1812H

Hall Effect Reference Sample Kit (Room Temperature)
Reference Samples.jpeg

Reference samples are crucial for testing the performance, operational status, and measurement accuracy of Hall effect instruments. We offer a standard set of reference samples accompanied by calibration certificates. This set allows you to independently test and calibrate your Hall effect setup, regardless of the system vendor.

​

The reference sample set comprises:

1. Network resistances - 10 Ohm

2. Network resistances - 1 kOhm

3. Network resistances - 100 kOhm

4. Network resistances - 1 GOhm

5. GaAs semiconductor sample

Part Number:

Ceramic Alumina PCB Board (for Small Size Samples) Type 1
Ceramic (Alumina) - small_edited.jpg

Ceramic (alumina) sample mounting PCBs with gold coated contact pads designed for variable temperature experiments ranging from 4.2 K to 700 K. This specific model enables the mounting of small-sized samples at the center of the ceramic PCB, facilitating wire soldering or wire bonding.

Moreover, additional gold-coated pads allow sample wiring to cryostat soldering pins or establish electrical contact using cryostat adjustable probes.

Part Number:   100518

Ceramic Alumina PCB Board (for Standard Size Samples) Type 2
Ceramic (Alumina) -standard_edited_edite

Ceramic (alumina) sample mounting PCBs with gold coated contact pads designed for variable temperature experiments ranging from 4.2 K to 700 K. This specific model enables the mounting of standard sizes samples (up to 8 x 8 mm squares) at the center of the ceramic PCB, facilitating wire soldering or wire bonding.

Moreover, additional gold-coated pads allow sample wiring to cryostat soldering pins or establish electrical contact using cryostat adjustable probes.

Part Number:   100517

Hall Effect Reference Sample  - GaAs (300K)
GaAs Ref sample.png

GaAs n-type thin film reference sample mounted on PCB board. Sample can be used for Hall system tests at room temperature.

​

Sample comes with calibration certificate and Hall effect measurements at 0.5 Tesla. Calibrations at different magnetic fields (up to 1.4 Tesla) can be done per customer request.

Part Number:

Hall Effect Reference Sample  - InAs (300K)
GaAs Ref sample_edited.jpg

InAs n-type thin film reference sample mounted on PCB board. Sample can be used for Hall system tests at room temperature.

​

Sample comes with calibration certificate and Hall effect measurements at 0.5 Tesla. Calibrations at different magnetic fields can be done per customer request.

Part Number:

Hall Effect Reference Sample  - InSb (300K)
GaAs Ref sample_edited.jpg

InSb n-type thin film reference sample mounted on PCB board. Sample can be used for Hall system tests at room temperature.

​

Sample comes with calibration certificate and Hall effect measurements at 0.5 Tesla. Calibrations at different magnetic fields can be done per customer request.

Part Number:

Hall Effect Reference Sample - InAs QW (300K)
GaAs Ref sample_edited.jpg

InAs quantum well reference sample mounted on PCB board. Sample can be used for Hall system tests at room temperature.

​

Sample comes with calibration certificate and Hall effect measurements at 0.5 Tesla. Calibrations at different magnetic fields can be done per customer request.

Part Number:

Hall Effect Reference Sample - GaAs (80 K - 500 K)
GaAs Ref sample_edited.jpg

GaAs thin film reference sample mounted on ceramic (alumina) PCB board. Sample can be used for Hall system tests at different temperatures from 80 K to 500 K.

​

The sample comes with measured resistivity, mobility, and carrier concentration variable temperature curves. The customer may specify the magnetic field and temperature range.

Part Number:

Hall Effect Reference Sample - InAs (80 K - 300 K)
GaAs Ref sample_edited.jpg

InAs thin film reference sample mounted on ceramic (alumina) PCB board. Sample can be used for Hall system tests at different temperatures from 80 K to 300 K.

​

The sample comes with measured resistivity, mobility, and carrier concentration variable temperature curves. The customer may specify the magnetic field and temperature range.

Part Number:

Hall Effect Reference Sample - InSb (80 K - 300 K)
GaAs Ref sample_edited.jpg

InSb thin film reference sample mounted on ceramic (alumina) PCB board. Sample can be used for Hall system tests at different temperatures from 80 K to 300 K.

​

The sample comes with measured resistivity, mobility, and carrier concentration variable temperature curves. The customer may specify the magnetic field and temperature range.

Part Number:

Hall Effect Reference Sample - InAs QW (80 K - 400 K)
GaAs Ref sample_edited.jpg

InAs Quantum Well reference sample mounted on ceramic (alumina) PCB board. Sample can be used for Hall system tests at different temperatures from 80 K to 400 K.

​

The sample comes with measured resistivity, mobility, and carrier concentration variable temperature curves. The customer may specify the magnetic field and temperature range.

Part Number:

Hall Effect Reference Sample - Silicon (300 K)

Si p-type reference sample (381 um thick) with ohmic contacts. Sample can be used for Hall system tests at room temperature.

​

The sample comes with calibration certificate for Hall effect measurements at 0.5 Tesla. Calibrations at different magnetic fields (up to 1.4 Tesla) can be done per customer request.

Part Number:

 Reference Sample Calibration Certificate (Example)
